Debezium CDC + Outbox on Kubernetes (with Helm)

The problem we had

Our services used to write to the database and then publish a Kafka event in the same request handler:

if err := s.repo.CreateUserRepo(ctx, user); err != nil {
    return err
}

redis.SetUserInRedis(ctx, string(user.UserId), user, 14*24*time.Hour)

kafka.ProduceUserEvents(
    models.TopicUsersAccounts,
    models.EventTypeAccountCreated,
    user.ToProto(),
)

This "double write" can fail halfway:

DB commit succeeds, but the Kafka publish fails (process crash, network hiccup, broker down).
Or we update multiple external stores (e.g., Redis + Kafka) and only some succeed → inconsistent state.

We wanted guaranteed, exactly-once semantics from the service's perspective without building custom retry/poison logic per handler. [1]

The outbox pattern (with Debezium)

Instead of publishing to Kafka in the handler, the service writes a row into an outboxevent table in the same DB transaction as the domain change. Debezium tails the database (logical decoding) and emits an event for each outbox row.

Atomicity: if the DB transaction rolls back, no event is emitted. If it commits, Debezium will eventually publish the event even if the service or broker restarts. [2]

High level flow:

// Service code (Tx)
//   ├─ update real tables
//   └─ insert into public.outboxevent (payload, headers...)  ← same DB tx
// Commit
//      ↓
// Debezium (Kafka Connect)
//   └─ reads WAL → Outbox Event Router SMT → produce to Kafka

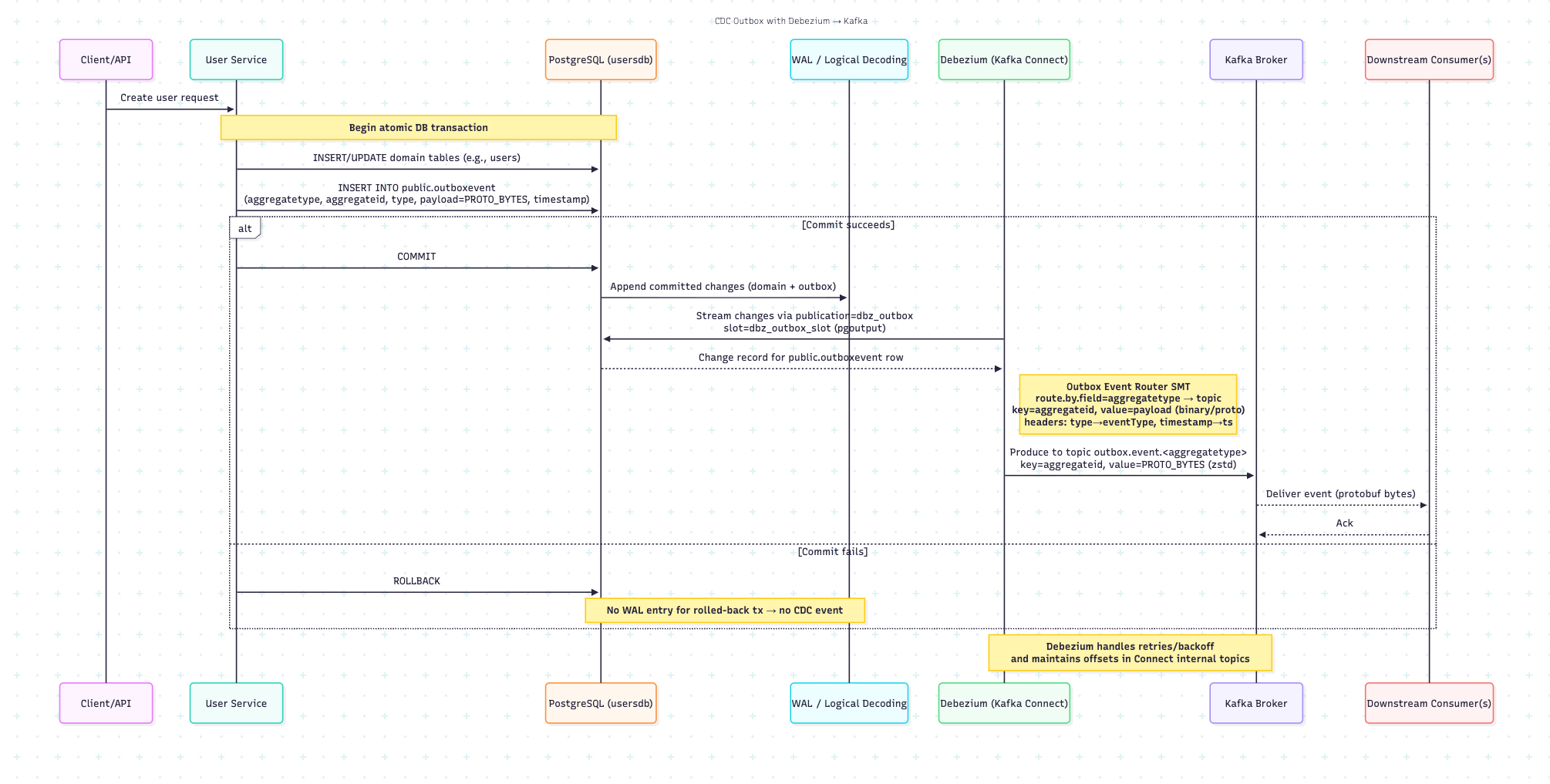

Debezium Outbox Flow

Why Debezium's Outbox Event Router?

Debezium ships a Single Message Transform (SMT) tailor-made for the outbox pattern. It:

Routes events to topics based on a column (e.g., aggregatetype → outbox.event.users).
Picks your event key (aggregateid).
Copies selected columns to Kafka headers (e.g., type → eventType, timestamp → ts).
Leaves the payload untouched (we put protobuf bytes in a bytea column).

We evaluated producing Protobuf directly from Debezium vs JSON. Debezium itself doesn't "know" Buf's Schema Registry, but by storing protobuf bytes in payload and using Debezium's BinaryDataConverter, we publish proto cleanly (no JSON bloat). For consumers that prefer JSON, you can choose JSON for those topics — outbox lets you decide per stream. [3]

Kubernetes deployment with Helm

We deploy our kafka connectors on Kubernetes and use Helm charts as cluster package manager. We have a dedicated repository for all our connectors and configurations.

Deployment template

yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: {{ .Release.Name }}-kafka-connect
  labels:
    app.kubernetes.io/name: kafka-connect
    app.kubernetes.io/instance: {{ .Release.Name }}
spec:
  replicas: {{ .Values.replicaCount }}
  selector:
    matchLabels:
      app.kubernetes.io/name: kafka-connect
      app.kubernetes.io/instance: {{ .Release.Name }}
  template:
    metadata:
      labels:
        app.kubernetes.io/name: kafka-connect
        app.kubernetes.io/instance: {{ .Release.Name }}
    spec:
      containers:
        - name: kafka-connect
          image: "{{ .Values.image.repository }}:{{ .Values.image.tag }}"
          imagePullPolicy: {{ .Values.image.pullPolicy }}
          ports:
            - name: http
              containerPort: 8083
          env:
            {{- range .Values.env }}
            - name: {{ .name }}
              value: "{{ .value }}"
            {{- end }}
          resources:
            {{- toYaml .Values.resources | nindent 12 }}
          readinessProbe:
            httpGet:
              path: "/"
              port: http
            initialDelaySeconds: 10
            periodSeconds: 10
          livenessProbe:
            httpGet:
              path: "/"
              port: http
            initialDelaySeconds: 20
            periodSeconds: 20
          volumeMounts:
            {{- if .Values.extraVolumeMounts }}
            {{- toYaml .Values.extraVolumeMounts | nindent 12 }}
            {{- end }}
      volumes:
        {{- if .Values.extraVolumes }}
        {{- toYaml .Values.extraVolumes | nindent 8 }}
        {{- end }}

Worker env specifics (values.yaml):

BOOTSTRAP_SERVERS: make sure k3d can reach your broker (often host.k3d.internal:9092 on Mac).
PLUGIN_PATH=/kafka/connect
FileConfigProvider so we can reference secrets in the connector JSON:
- CONFIG_PROVIDERS=file
- CONFIG_PROVIDERS_FILE_CLASS=org.apache.kafka.common.config.provider.FileConfigProvider

We also mount a Secret containing /opt/kafka/external-configuration/db.properties with DB creds/host.

Service

yaml

apiVersion: v1
kind: Service
metadata:
  name: {{ .Release.Name }}-kafka-connect
spec:
  type: {{ .Values.service.type }}
  selector:
    app.kubernetes.io/name: kafka-connect
    app.kubernetes.io/instance: {{ .Release.Name }}
  ports:
    - name: http
      port: {{ .Values.service.port }}
      targetPort: 8083

Connector ConfigMap

Here is the full connector configuration we deploy via ConfigMap. [4]

json

{
  "connector.class": "io.debezium.connector.postgresql.PostgresConnector",
  "tasks.max": "1",
  "topic.prefix": "pg",

  "database.hostname": "${file:/opt/kafka/external-configuration/db.properties:database.hostname}",
  "database.port": "${file:/opt/kafka/external-configuration/db.properties:database.port}",
  "database.user": "${file:/opt/kafka/external-configuration/db.properties:database.user}",
  "database.password": "${file:/opt/kafka/external-configuration/db.properties:database.password}",
  "database.dbname": "${file:/opt/kafka/external-configuration/db.properties:database.dbname}",

  "plugin.name": "pgoutput",
  "slot.name": "dbz_outbox_slot",
  "publication.name": "dbz_outbox",
  "publication.autocreate.mode": "disabled",

  "table.include.list": "public.outboxevent",
  "snapshot.mode": "never",
  "include.schema.changes": "false",

  "transforms": "outbox",
  "transforms.outbox.type": "io.debezium.transforms.outbox.EventRouter",
  "transforms.outbox.route.by.field": "aggregatetype",
  "transforms.outbox.route.topic.replacement": "outbox.event.${routedByValue}",
  "transforms.outbox.table.field.event.key": "aggregateid",
  "transforms.outbox.table.field.event.payload": "payload",
  "transforms.outbox.table.fields.additional.placement": "type:header:eventType,timestamp:header:ts",

  "key.converter": "org.apache.kafka.connect.storage.StringConverter",
  "value.converter": "io.debezium.converters.BinaryDataConverter",
  "producer.override.compression.type": "zstd"
}

What each bit does:

database.*: pulled from our mounted /opt/kafka/external-configuration/db.properties via FileConfigProvider.
pgoutput + slot/publication: logical decoding setup (we create publication via Flyway).
table.include.list: only read public.outboxevent.
snapshot.mode=never: don't snapshot history; only tail new changes.
Outbox SMT:
- route.by.field=aggregatetype → topic outbox.event.${routedByValue} (e.g., users → outbox.event.users)
- event.key=aggregateid → Kafka key is the aggregate ID.
- event.payload=payload → pick our bytea column as the message value.
- additional.placement: copy type → header eventType, and timestamp → header ts.
Converters: keys are strings, values are binary via BinaryDataConverter (protobuf bytes pass through untouched).
Compression: zstd on the producer.

Why we need a Helm hook Job

Kafka Connect doesn't read ConfigMaps to create connectors. You must POST/PUT JSON to its REST API. We added a hook Job that:

Waits for /connector-plugins,
PUTs our JSON (idempotent: create or update),
Prints HTTP code + body so CI/CD logs are useful.

yaml

apiVersion: batch/v1
kind: Job
metadata:
  name: {{ .Release.Name }}-apply-connector
  annotations:
    "helm.sh/hook": post-install,post-upgrade
    "helm.sh/hook-weight": "10"
    "helm.sh/hook-delete-policy": before-hook-creation,hook-succeeded
spec:
  template:
    spec:
      restartPolicy: Never
      containers:
        - name: apply
          image: curlimages/curl:8.8.0
          env:
            - name: CONNECT_URL
              value: "http://{{ .Release.Name }}-kafka-connect.{{ .Release.Namespace }}.svc:8083"
          volumeMounts:
            - name: cfg
              mountPath: /cfg
          args:
            - /bin/sh
            - -ec
            - |
              echo "Waiting for Connect REST..."
              i=0
              until curl -s "${CONNECT_URL}/connector-plugins" >/dev/null; do
                i=$((i+1)); if [ "$i" -gt 60 ]; then echo "Connect not ready"; exit 1; fi
                sleep 2
              done

              echo "Applying pg-outbox connector..."
              resp="$(curl -s -w '\n%{http_code}' -X PUT \
                "${CONNECT_URL}/connectors/pg-outbox/config" \
                -H 'Content-Type: application/json' \
                --data-binary @/cfg/pg-outbox-config.json)"
              code="$(echo "$resp" | tail -n1)"
              body="$(echo "$resp" | sed '$d')"
              echo "HTTP $code"
              echo "$body"
              test "$code" -ge 200 -a "$code" -lt 300
              echo "Done."
      volumes:
        - name: cfg
          configMap:
            name: usersdb-pg-proto-outbox-config

Flyway migration (DB role, table, grants, publication)

Now we need an outbox table that Debezium can listen for change logs and fire events based on every row inserted. Columns in the table define topic, key, event headers, and data to be produced. [5]

sql

-- 1) Debezium role (needs REPLICATION)
DO $$
BEGIN
  IF NOT EXISTS (SELECT 1 FROM pg_roles WHERE rolname = 'debezium') THEN
    CREATE ROLE debezium WITH LOGIN PASSWORD '${DEBEZIUM_PASSWORD}';
    ALTER ROLE debezium REPLICATION;
  END IF;
END$$;

-- 2) Outbox table
CREATE TABLE IF NOT EXISTS public.outboxevent (
  id             uuid PRIMARY KEY,
  aggregatetype  text NOT NULL,
  aggregateid    text NOT NULL,
  type           text NOT NULL,
  payload        bytea NOT NULL,
  timestamp      timestamptz NOT NULL DEFAULT now()
);

-- 3) Grants
GRANT CONNECT ON DATABASE ${DB_NAME} TO debezium;
GRANT USAGE ON SCHEMA public TO debezium;
GRANT SELECT ON TABLE public.outboxevent TO debezium;

-- 4) Publication
DO $$
BEGIN
  IF NOT EXISTS (SELECT 1 FROM pg_publication WHERE pubname = 'dbz_outbox') THEN
    CREATE PUBLICATION dbz_outbox FOR TABLE public.outboxevent;
  END IF;
END$$;

Now in your service, your handler can write domain row and outbox row in the same DB transaction — events fire automatically, and even in case of failures your data won't remain inconsistent across services:

tx, err := db.BeginTx(ctx, nil)
if err != nil { return err }
defer tx.Rollback()

if err := repo.CreateUserTx(ctx, tx, user); err != nil {
    return err
}

out := OutboxEvent{
    ID:            uuid.New(),
    AggregateType: "users",
    AggregateID:   user.ID,
    Type:          "UserCreated",
    Payload:       user.ToProtoBytes(),
    Timestamp:     time.Now().UTC(),
}
if err := repo.InsertOutboxTx(ctx, tx, out); err != nil {
    return err
}

if err := tx.Commit(); err != nil { return err }

Sanity checks

Once deployed, verify Kafka Connect is up and the connector is running. [6]

Is Connect up?

bash

kubectl -n kafka-connect rollout status deploy/connect-kafka-connect
kubectl -n kafka-connect run curl --rm -i --image=curlimages/curl:8.8.0 -- \
  sh -c 'curl -s http://connect-kafka-connect:8083/connector-plugins'

Connector status:

bash

kubectl -n kafka-connect run curl --rm -i --image=curlimages/curl:8.8.0 -- \
  sh -c 'curl -s http://connect-kafka-connect:8083/connectors/pg-outbox/status'

Nothing in topic? Insert a test row and consume:

sql

INSERT INTO public.outboxevent
  (id, aggregatetype, aggregateid, type, payload, timestamp)
VALUES
  (gen_random_uuid(), 'users', 'u-123', 'UserCreated',
   '\xDEADBEEF'::bytea, now());

bash

kafka-console-consumer --bootstrap-server localhost:9092 \
  --topic outbox.event.users --from-beginning \
  --property print.key=true --property print.headers=true

Postgres settings for logical decoding (self-managed):

ini

wal_level=logical
max_wal_senders≥connectors
max_replication_slots≥connectors
max_slot_wal_keep_size (cap WAL bloat)

Conclusion

Moving from "publish in handlers" to Debezium CDC + Outbox eliminated inconsistent writes and made our eventing durable and deterministic. The entire stack is declarative (Helm + Flyway), easy to roll forward/back, and portable from local k3d to production.

The interesting question isn't can Debezium tail your WAL. It's what happens when it lags by 30 seconds and your service already retried. The outbox gives you the answer: the event still lands exactly once, because the DB transaction was the source of truth all along.

If you're in the same spot — publishing Kafka events directly from service code — this pattern will save you from subtle data loss and late-night incident drills.
